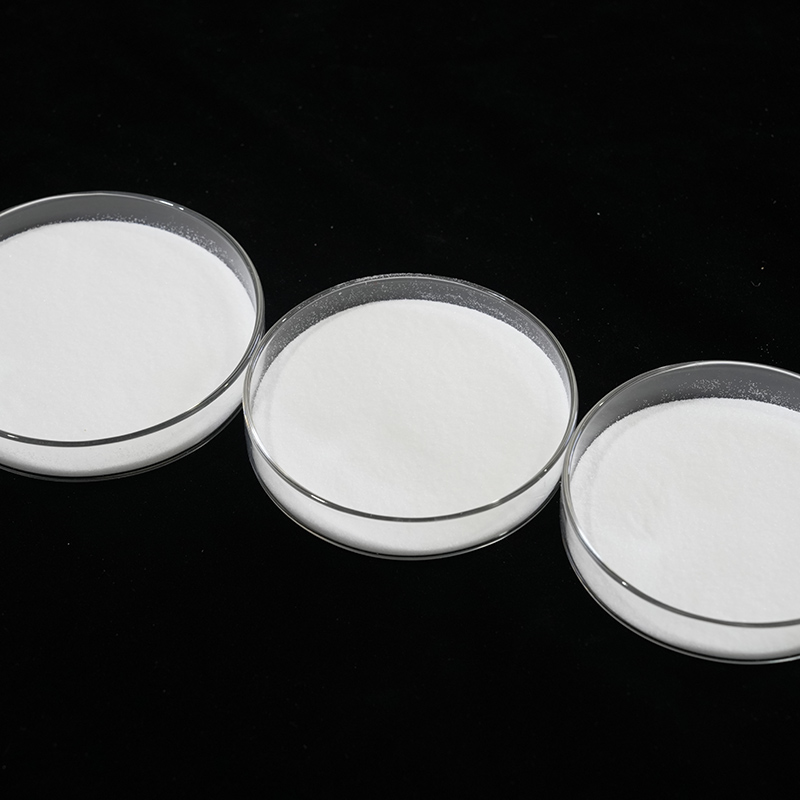

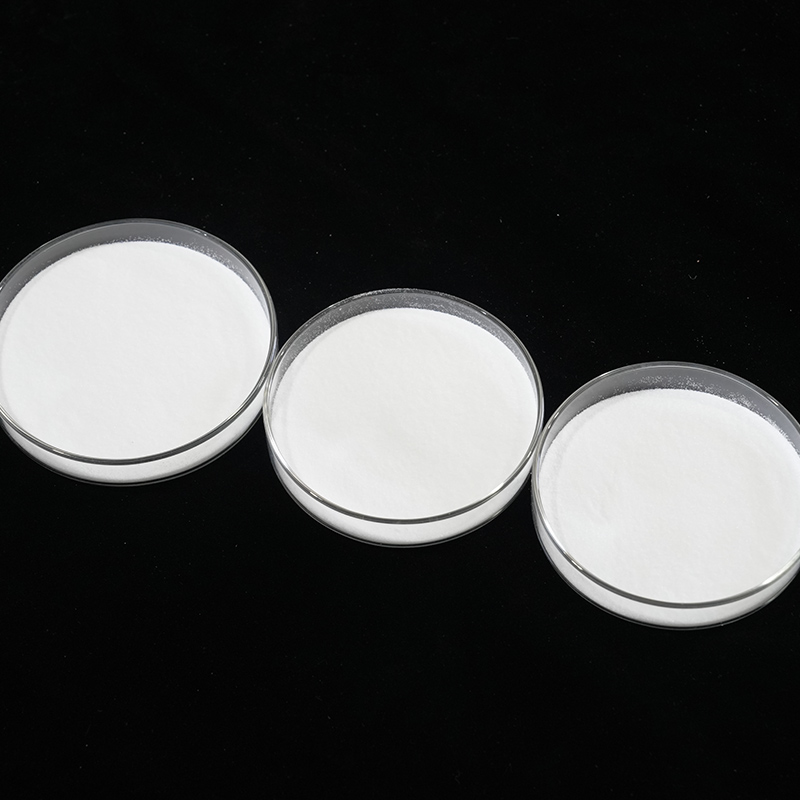

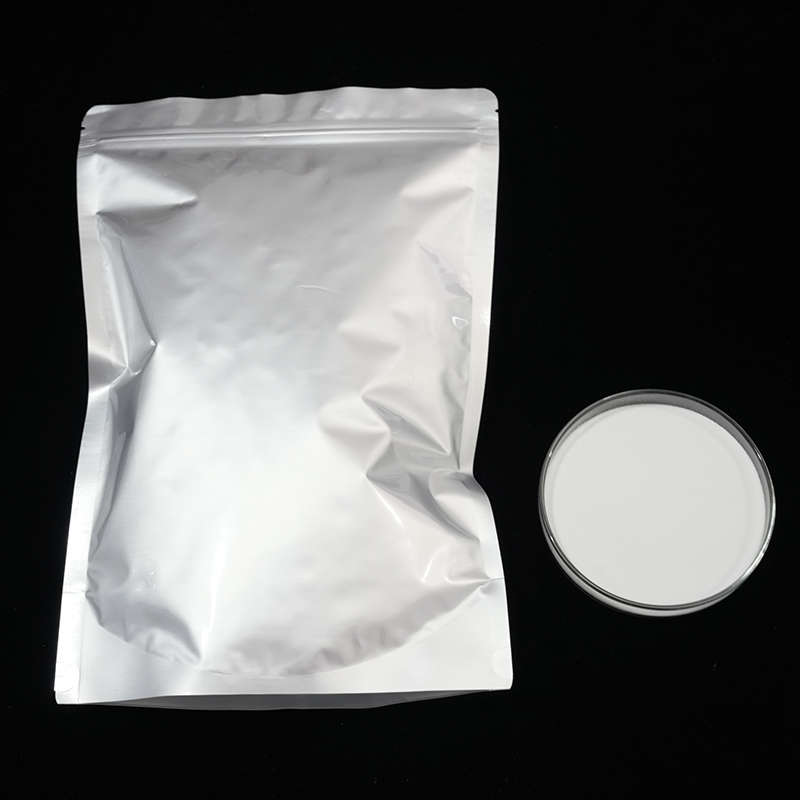

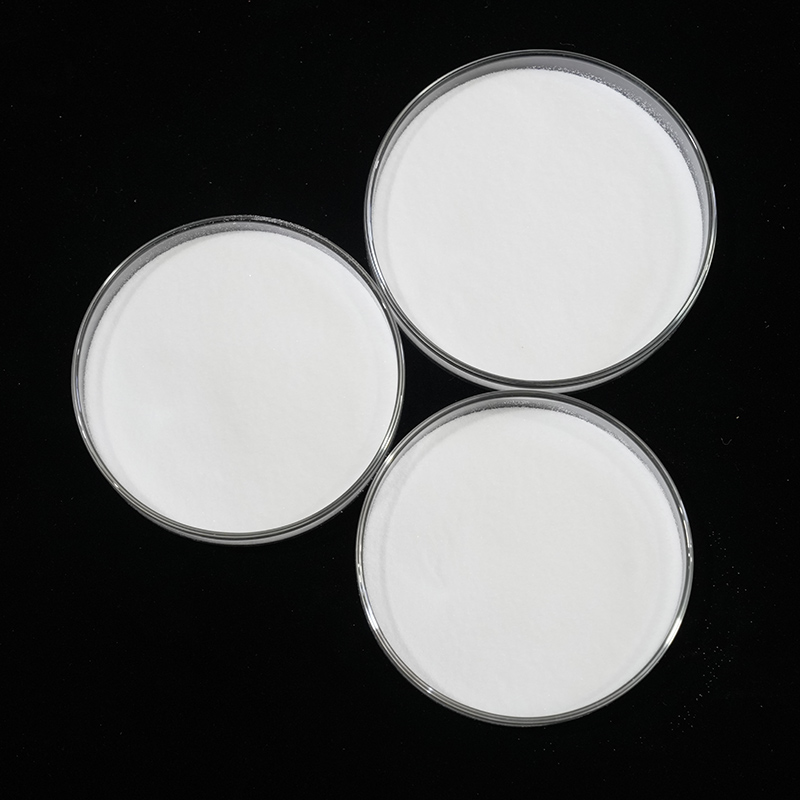

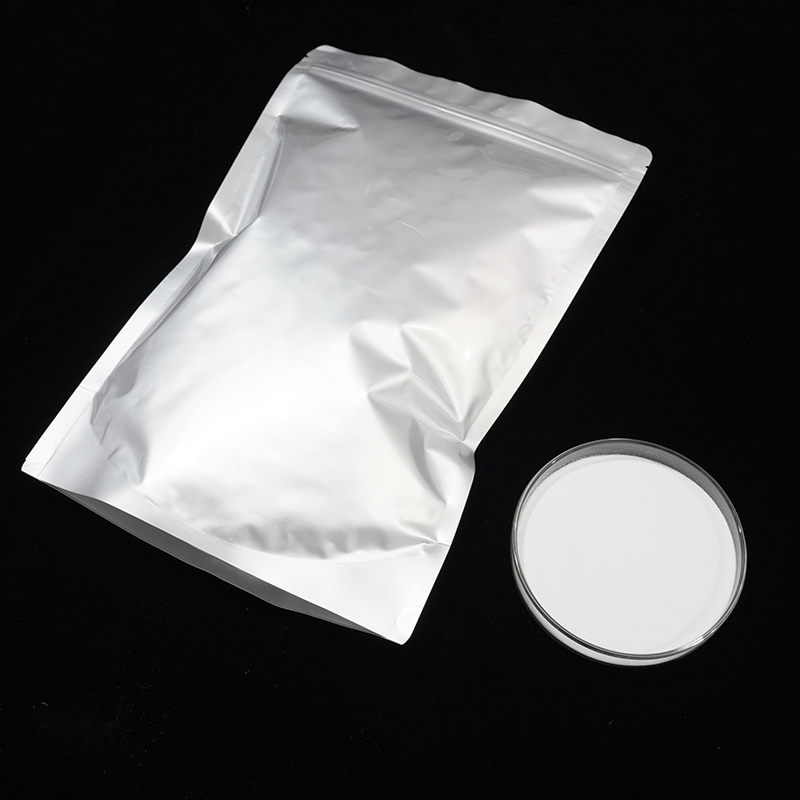

TPU Hot melt adhesive powder

Overcoming Interface Challenges: Technological Innovations and Practical Applications of TPU Hot Melt Adhesive Powder in Carbon Fiber Composite Bonding

Carbon fiber composites, renowned for their lightweight properties, high strength, and corrosion resistance, play a pivotal role in aerospace, new energy vehicles, and high-end equipment manufacturing. However, their inherent surface inertness and low chemical reactivity pose significant challenges for bonding technologies. TPU Hot melt adhesive powder, as an eco-friendly bonding material, offers efficient adhesion but faces unique interfacial compatibility challenges. Nantong Feiang Composite Materials Co., Ltd., a high-tech enterprise specializing in hot melt adhesives, addresses these challenges through material modification and process optimization, delivering systematic solutions for reliable carbon fiber composite bonding.
I. Four Key Interface Challenges in Carbon Fiber Bonding
Wetting Limitations Due to Surface Energy Differences
Carbon fiber surfaces exhibit a surface energy of 30–40 mJ/m², while molten TPU adhesive powder has a surface energy of 35–45 mJ/m². This narrow gap often leads to insufficient wetting during curing. Feiang’s nano-SiO₂ modification technology elevates the adhesive’s surface energy to >50 mJ/m² and introduces polar groups (e.g., hydroxyl and amino), enhancing penetration into carbon fiber pores.
Thermal Expansion Coefficient (CTE) Mismatch Risks
Carbon fiber composites (CTE ≈ 0.5×10⁻⁶/K) and conventional TPU (CTE ≈ 150×10⁻⁶/K) exhibit drastic CTE differences, causing interfacial stress under thermal cycling. Feiang’s low-modulus TPU formulation (elastic modulus ≤5 MPa), incorporating flexible molecular chains, maintains CTE compatibility between -40°C and 120°C, reducing shear strength decay to <5%.
Chemical Bonding Barriers
The chemical inertness of carbon fiber’s graphitic structure limits reactive bonding with TPU chains. Feiang employs plasma pretreatment to generate oxygen-containing functional groups (C-O, C=O) on carbon fibers, while adding maleic anhydride grafting agents to TPU powder. This achieves chemical crosslinking, tripling interfacial peel strength to 8.2 N/mm (ASTM D1876).
Process Parameter Sensitivity
The melting temperature of TPU adhesive (120–160°C) overlaps with the glass transition temperature (Tg ≈ 130–180°C) of carbon fiber epoxy matrices, risking thermal damage. Feiang’s precision gradient temperature control (±2°C) and low-melting-point modified TPU powder (110°C) enable rapid curing (<20 seconds) without substrate degradation.
II. Nantong Feiang’s Solutions and Technological Advantages
As a leading hot melt adhesive supplier, Feiang leverages its Polymer Synthesis Laboratory and Composite Interface Engineering Center to deliver end-to-end innovations:
Modified TPU Formulations: The FTPU-600 series, tailored for carbon fiber, balances high initial adhesion (peel strength ≥4 N/mm) and long-term fatigue resistance (>90% strength retention after 10⁶ cycles) via block copolymerization.
Process Optimization: Customized Temperature-Pressure-Time (TPT) protocols, combined with infrared thermal imaging, ensure bonding consistency. In EV battery case bonding, adhesive seams achieve IP67 airtightness.
Versatile Adaptability: Adjustable particle sizes (20–200 mesh) and activation temperatures cater to diverse substrates, including prepregs, woven fabrics, and 3D-printed parts, meeting demands from microelectronics to large-scale structures.
III. Industry Applications and Value Creation
Feiang’s TPU adhesive powders excel in strategic sectors:
New Energy: Solar panel frame bonding reduces weight by 30%, enhancing bifacial module efficiency.
Transportation: High-speed train interior panels comply with EN 45545 fire safety standards.
Consumer Electronics: Drone carbon fiber frames show 50% higher impact resistance and 100% drop-test pass rates.
With ISO 9001 and IATF 16949 certifications, Feiang collaborates with 20+ global carbon fiber manufacturers to drive continuous innovation.
